Resin Cast Instrument Transformers - Indoor Application

Indoor Applications

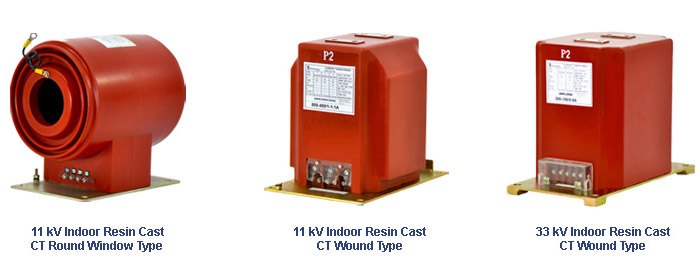

Gemini Instratech manufactures a wide range of CTs (Wound Primary / Bar Primary / Window) available from 3.6 kV to 36 kV. Current Transformers are cast using a liquid resin system with plasticizer processed under vacuum at controlled temperatures. All CTs have been type tested as per latest revision of IEC 60044-‐1. A variety of different frames cover CTs with primary currents ranging from 5 Amperes to 5000 Amperes. CT designs are tailor-made to suit customer requirements for specific applications.

Product Features

Manufactured using high grade of Epoxy Resin System
Suitable for temperature range -40° C to +80° C.
High mechanical stability of the winding and high strength against impulse and surge voltages.
high mechanical strength against the forces developed during dynamic currents.

Technical Specifications

Current Tranformers Specification

	Unit
Standard	IEC 60044-1 (2003); IS 2705 (1992)
Highest System Voltage	kV	3.6	7.2	12	17.5	24	36
One Min, Power Frequency Voltage	kV	15	28	38	38	50	95
Lightning Impulse	kVp	40	60	95	95	125	200
Max. Short Time Current for 3 seconds	kA	40	40	40	40	40	40

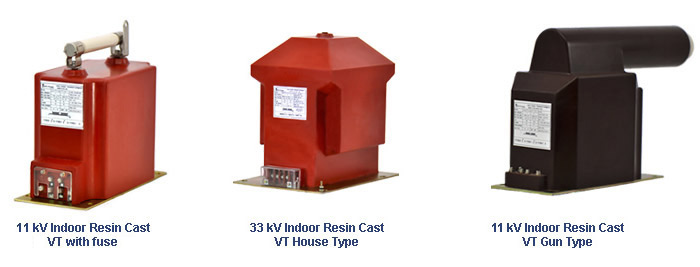

Voltage Transformers Specification

	Unit
Standard	IEC 60044-2 (2003); IS 3156 (1992)
Highest System Voltage	kV	3.6	7.2	12	17.5	24	36
One Min, Power Frequency Voltage	kV	15	28	38	38	50	95
Lightning Impulse	kVp	40	60	95	95	125	200
Max. Voltage Factor	kA	1.2 continuous /1.9 for 8 hrs.
